Striebig Control

striebig control

The Premium Vertical Cutting Centre

The new and improved Striebig Control vertical wall saw is a comprehensive vertical cutting centre designed to meet the demanding needs of today’s panel processors. It sets itself apart from other vertical panel saws with its high degree of automation and user-friendly operations that deliver secure and risk-free operation. With the Control, manual work is a thing of the past, guaranteeing that sizing is performed easily and quickly.

Just “Touch And Saw”

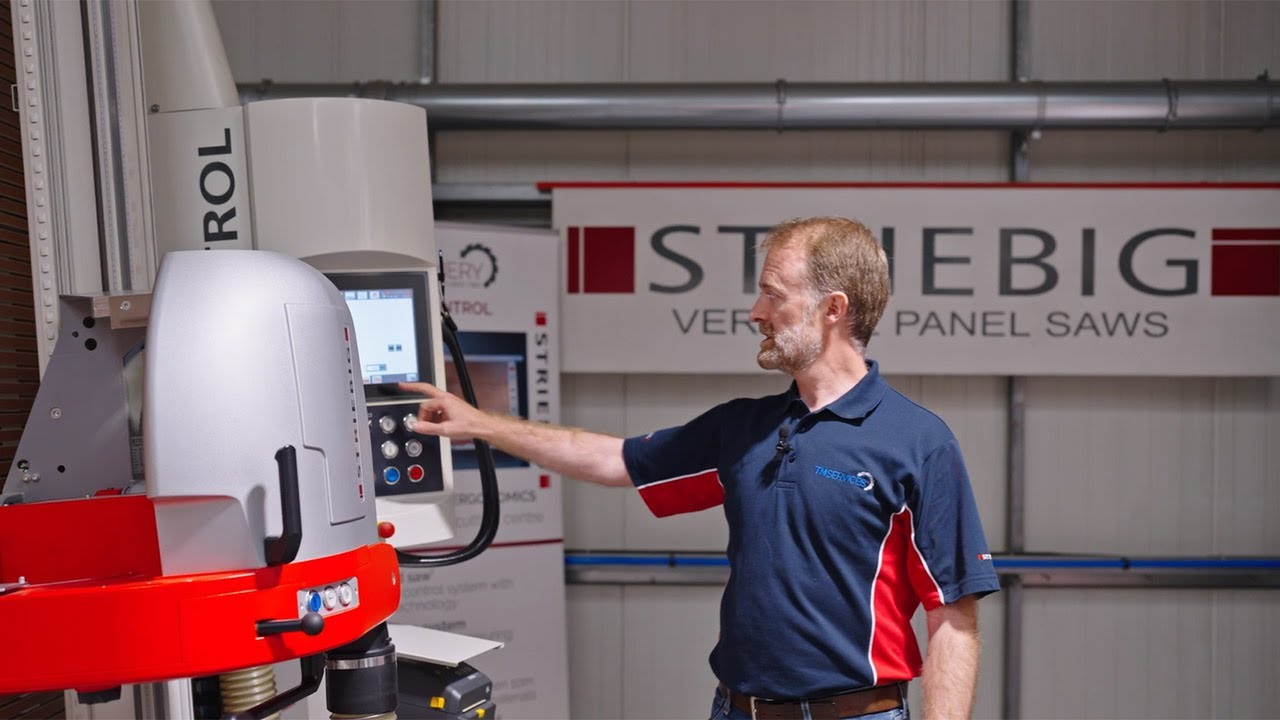

The unique “touch and saw” operating system developed exclusively by Striebig is activated via an innovative, programmable, touch-screen control system. This raises the efficiency of the Control vertical wall saw to new and unrivalled levels. You simply touch the panel with your finger tips to carry out every operation while the 12-inch colour display screen visualises all functions. This easy-to-use system ensures that operating errors are reduced to a minimum.

Powerful Efficiency

With pneumatic assistance, the vertical wall saw unit plunges fully automatically into the panel. Feed speeds can be adjusted to the material being sized. Other advanced built-in features that come as standard include panel end recognition, constant return speed of the saw unit, an operating-hour meter and a digital measuring system on both axes.

Highlights of the Striebig Control

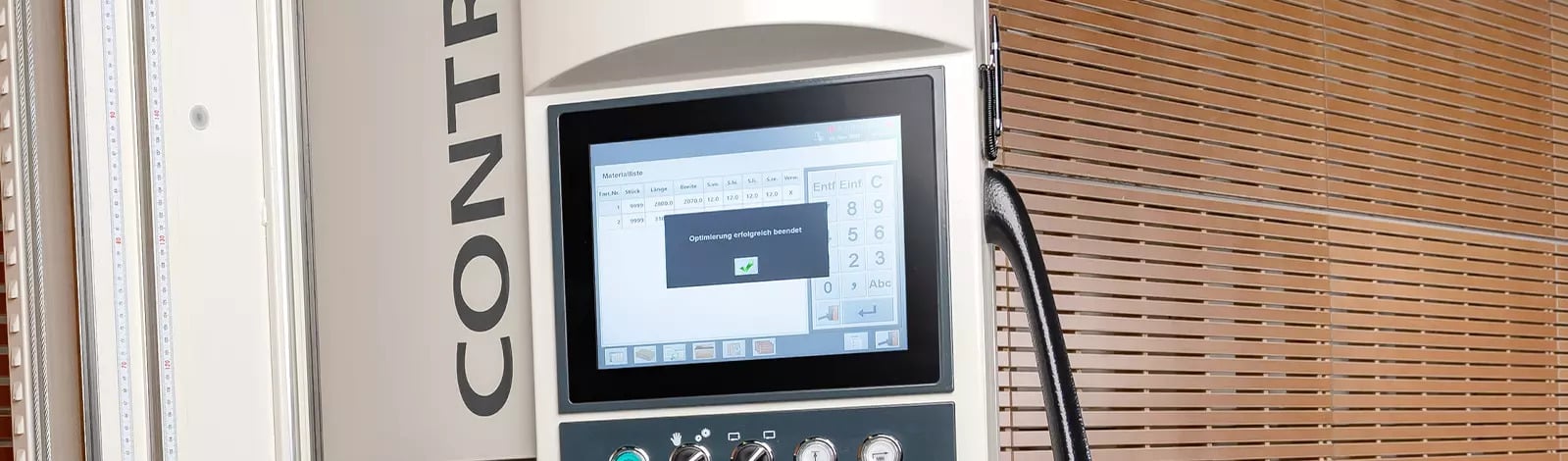

The Control defines the premium class for vertical sawing technology through a high degree of sawing process automation and innovative equipment options. The intelligent visualisation on the clearly arranged 12-inch touch screen computer guides you safely step-by-step through the cutting process.

Thanks to the standard EPS-Y you can automatically position the saw unit for horizontal sawing. The ABO, which is also a standard feature, ensures the automatic top trimming cut. Whilst the 4SB lower trimming ensures the lower trimming cuts are performed automatically. The turning of the panel material and the heavy physical work associated with it is no longer necessary.

Some Key Features

  • Fully automated cut cycle
  • High production panel sizing solution
  • Automatic beam and saw head positioning
  • Panel end detection for increased efficiency
  • 12-inch touch screen and updated easy to use operating system
  • Optional ExpertCut optimisation software

Technical Information

Weight of the sawapprox. 1.200 kg
Cutting depth80 mm *1
Saw motor power5.5 kW (7.5 HP)
Saw blade diameter300 mm
Saw blade bore30 mm *2
Emission sound pressure level at the workplace LpA83 dB *3
Saw blade speed4800 rpm
1 extraction connectionø 140 mm
Compressed air connection6-10 bar
Wattage7.3 kW
Wattage with option 4SB10.7 kW
Mains connection3 x 400 V / 50 Hz

Get In Touch With Us

At TM Machinery, we are committed to providing top-notch machinery solutions to meet your industrial needs. Whether you’re looking for cutting-edge equipment, maintenance services, or expert advice, we’re here to assist you every step of the way.

Whether you’re an existing customer seeking support or a potential client interested in exploring our products and services, we invite you to get in touch with us.

Download Brochure

For more information on the Striebig Control you can download the product brochure here.
